Overview
|
Item |

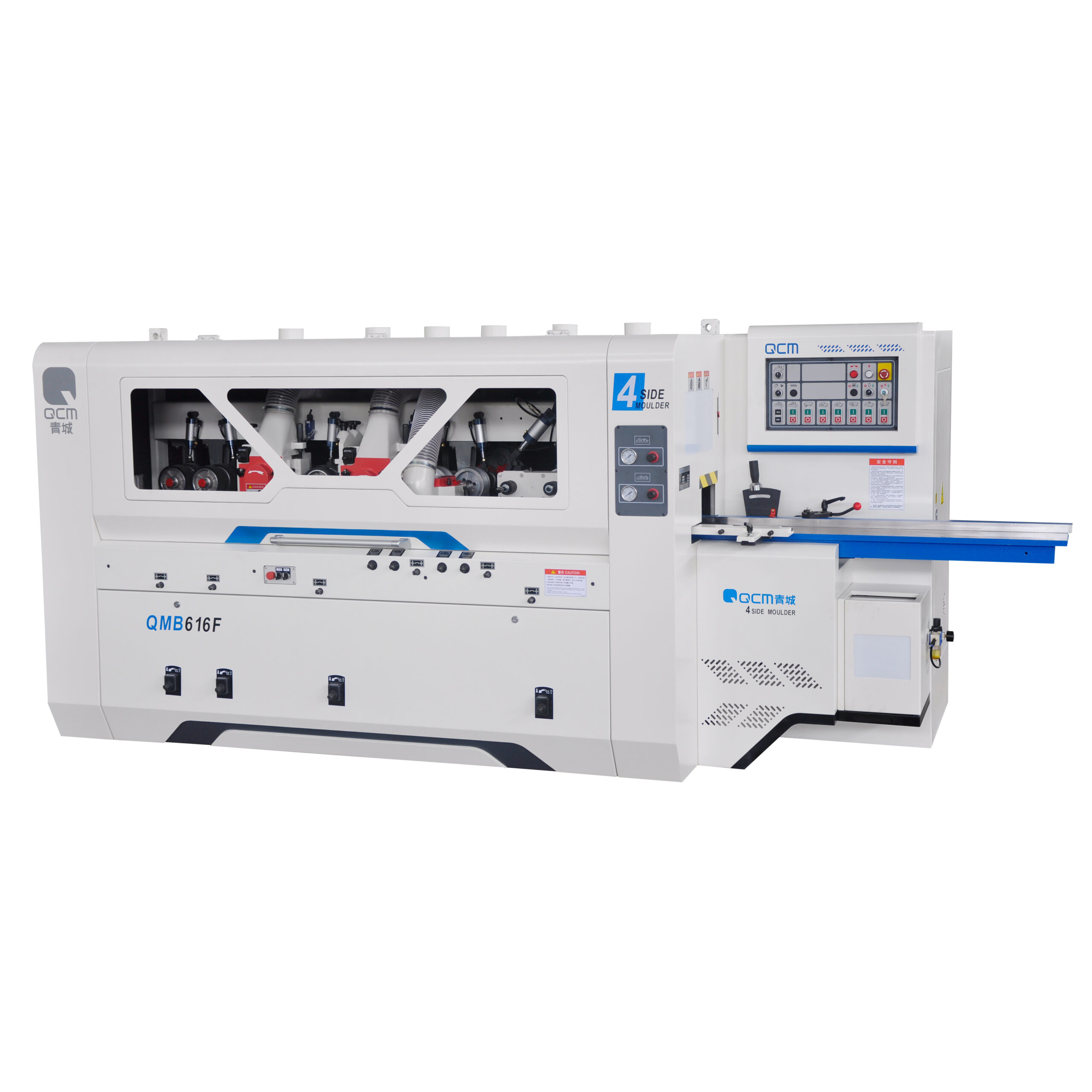

QMB616FT |
|
|
Max.working width(cutter dia.φ125) |
160mm |
|
|
Min.working width(cutter dia.φ125) |
20mm |
|
|
Max.working thickness(cutter dia.φ125) |
100mm |
|
|
Min.working thickness(cutter dia.φ125) |
8mm |
|
|
Min.working length(single) |
530mm |
|
|
Min.working length(continously) |
300mm |
|
|
Max.lifting of movable long feeding table |
6mm |
|
|
Max.movement of movable long side fence |
5mm |
|
|
Spindle dia. |
φ40mm |
|
|
Upper feeding wheel |
φ140mm |
|
|
Feeding speed |
8~33m/min |
|
|
Spindle speed |
6800r/min |
|
|
Spindle axial movement |
Bottom/top spindle |
10mm |
|
Vertical spindle |
30mm |
|
|
Cutter dia. |
First bottom cutter(planing) |
φ125 |
|
First bottom cutter(trimming edge D*H) |
φ152×12 |
|
|
Vertical spindle |
φ115~φ170mm |
|
|
Top/rear bottom cutter |
φ105~φ150mm |
|
|
Motor power |
First bottom/right/left spindle |
Each 4kW |
|
Front top/rear bottom spindle |
Each 5.5kW |
|
|
Rear top spindle |
4kW |
|
|
Feeding motor |
4.0kW |
|
|
Beam lifting motor |
0.75kW |
|
|
Air supply pressure |
0.3~0.6MPa |
|
|
Compressed air requirement |
0.15m3/min |
|
|
Dust outlet |
φ120mm×6 |
|
|
Collection system air speed |
30~35m/s |
|
|
Collection system air requirement |
180m3/min |
|
|
Overall dimension(L*W*H) |
372×160×170(cm) |
|
|
Weight |
3700Kg |
|
Note：the above appearance and technical parameter all are subject to the real product.
