Overview
|
NO. |
Item |
Unit |

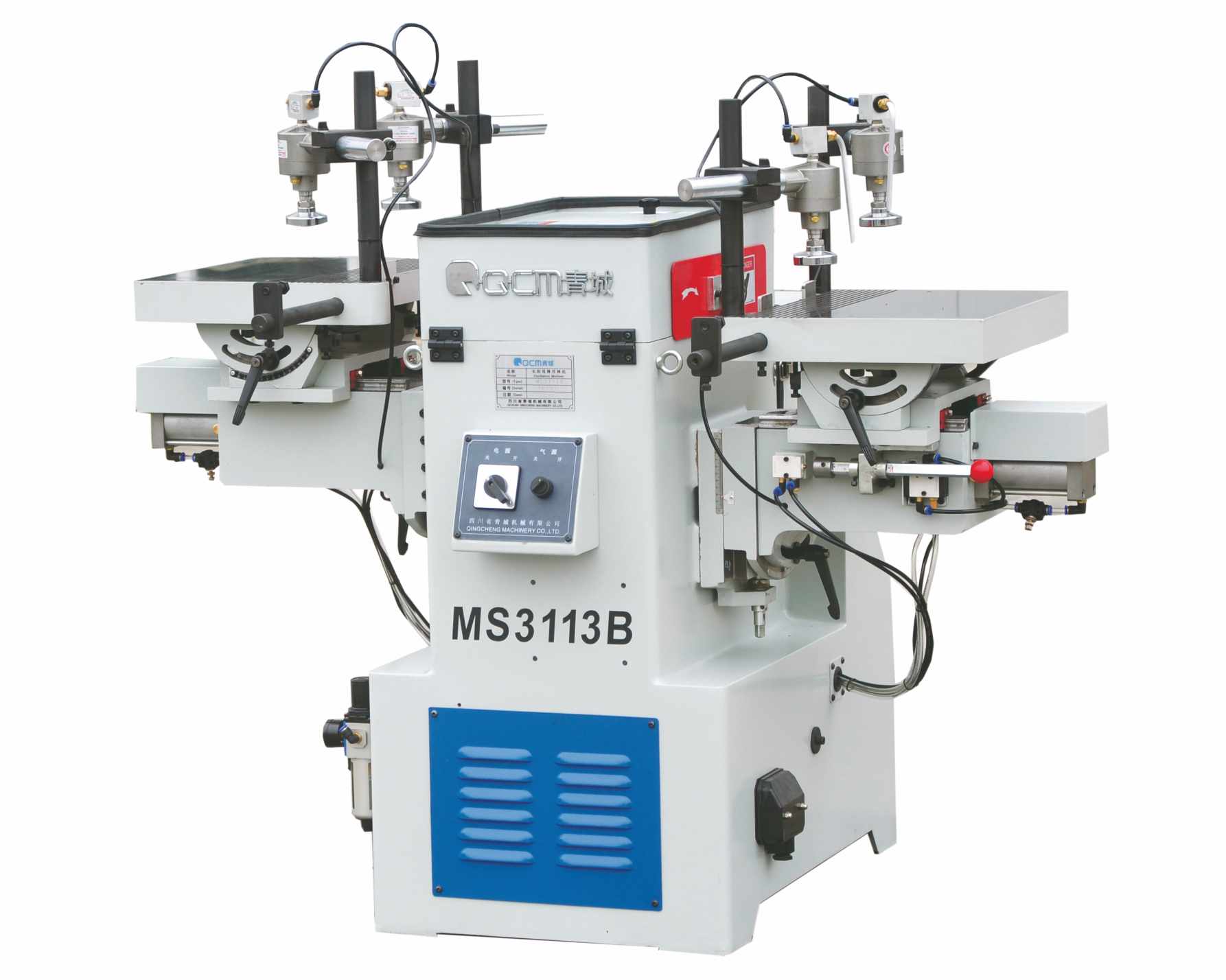

MS3113B |
|
1 |
Max.length of mortise |
mm |
130 |
|
2 |
Max. depth of mortise |
mm |
60 |
|
3 |
Max. width of mortise |
mm |
16 |
|
4 |
Worktable lifting trip |
mm |
70 |
|
5 |
(left and right)Tilt angle of work table |
度 |
-20°~+20° |
|
6 |
(forward and backward)Tilt angle of work table |
度 |
-5°~+25° |
|
7 |
Spindle speed |
r/min |
15000 |
|
8 |
Hunting frequency |
pcs/min |
170-230 |
|
9 |
Motor power |
kW |
2.2 |
|
10 |
Working air pressure |
Mpa |
0.6 |
|
11 |
Overall dimension |
cm |
148*115*125 |
|
12 |
Weight |
kg |
550 |
